OCR’ing a power meter

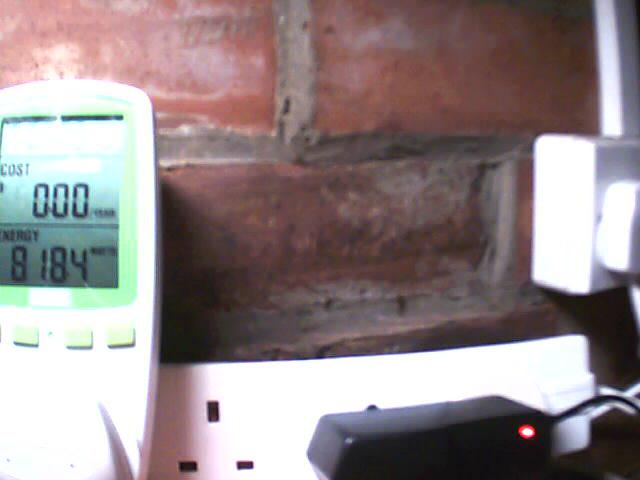

The following shows the output of the IP camera which is photographing the power meter (what the photo doesn’t show is a large high powered light just above the power meter, to keep the output nice and clear):

We then threshold the image so that the numbers are clearly recognizable:

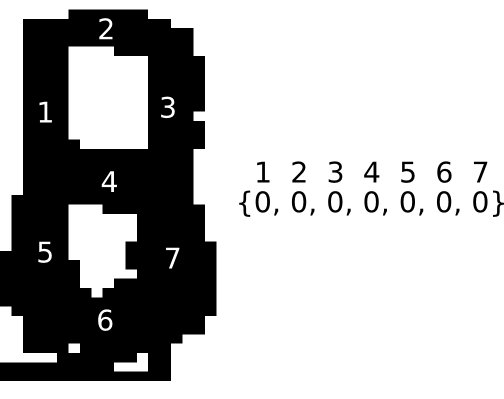

Seven points where then taken from the LCD segments and mapped to a list, we are then able to compare the list to known values for different digits:


We moved the points across the image to detect each of the digits on the power meter.

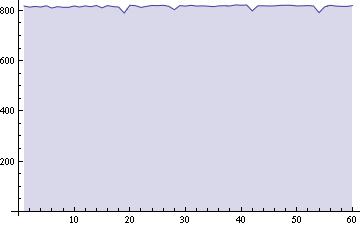

The following shows the output from 1 hours worth of samples from a blade server, taken each minute:

The following is the Mathematica sourcecode:

datav = {}

For1][[1]];

 powermeter =
  Binarize[GaussianFilter[Binarize[powermeter, 0.27], 1], 0.20];

 output = 0;
 For[z = 0, z <= 3, z = z + 1,
  x = z*20;
  seg = {ImageValue[powermeter, {73 - x, 225}],
    ImageValue[powermeter, {79 - x, 231}],
    ImageValue[powermeter, {84 - x, 220}],
    ImageValue[powermeter, {78 - x, 216}],
    ImageValue[powermeter, {72 - x, 209}],
    ImageValue[powermeter, {78 - x, 201}],
    ImageValue[powermeter, {84 - x, 206}]};

  digit = -1;
  If[seg == {0, 0, 0, 1, 0, 0, 0}, digit = 0] ;
  If[seg == {1, 1, 0, 1, 1, 1, 0}, digit = 1];
  If[seg == {1, 0, 0, 0, 0, 0, 1}, digit = 2];
  If[seg == {1, 0, 0, 0, 1, 0, 0}, digit = 3];
  If[seg == {0, 1, 0, 0, 1, 1, 0}, digit = 4];
  If[seg == {0, 0, 1, 0, 1, 0, 0}, digit = 5];
  If[seg == {0, 0, 1, 0, 0, 0, 0}, digit = 6];
  If[seg == {1, 0, 0, 1, 1, 1, 0}, digit = 7];
  If[seg == {0, 0, 0, 0, 0, 0, 0}, digit = 8];
  If[seg == {0, 0, 0, 0, 1, 0, 0}, digit = 9];
  output += digit*(10^(z - 1));

  ];

 If[output <= 300, output *= 10];
 datav  = Append[datav, output];
 Pause[60];
 ]

ListLinePlot[datav, {Filling -> Axis, AxesOrigin -> {0, 0}}]

As it’s hard to recognize the decimal point in the image, I use knowledge of the fact my blade server is unlikely to be running at <=300W
so it should in-fact be running at 3000W. This is accounted for in this line:

If[output <= 300, output *= 10];

I tried an alternative approach whereby I attempted correlation between a digit in the photo and each of the respective digits 0-9 in a training file, I think because of the noise in the image and various jpeg artifacts, the comparison of the different digits was to poor.
